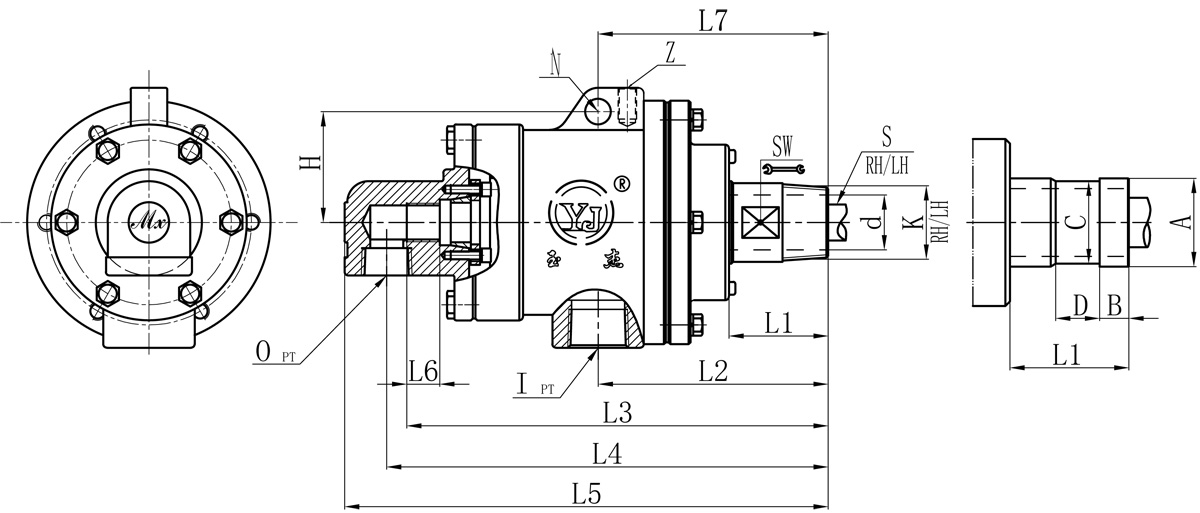

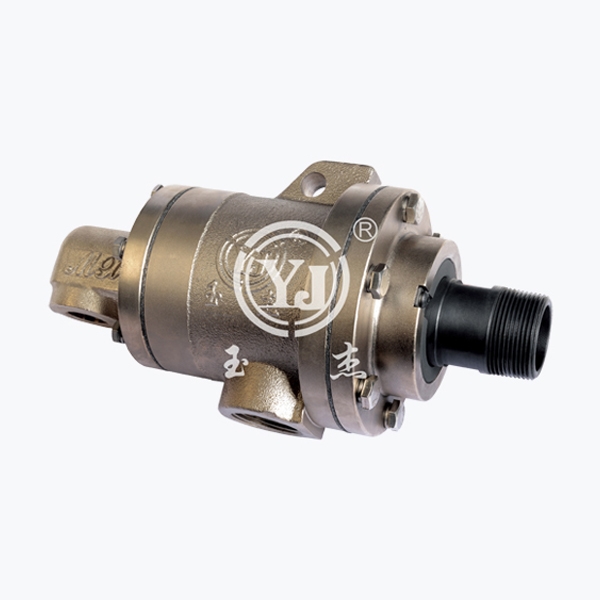

| Model | K | I | O | S | d | L1 | L2 | L3 | L4 | L5 | L6 | L7 | Z | N | SW | H | 法兰式外管尺寸对照表 | |||
| A | B | C | D | |||||||||||||||||
| 32A | R1-1/4" | Rc1" | Rc3/4" | Rp1/2" | 30 | 54 | 128 | 232 | 246 | 270 | 18 | 132 | M10 | 14 | 39 | 62 | 40 | 13 | 38 | 20 |
| 40A | R1-1/2" | Rc1-1/4" | Rc3/4" | Rp3/4" | 36 | 57 | 142 | 262 | 276 | 300 | 20 | 143 | M10 | 16 | 45 | 69 | 47.8 | 13 | 45 | 20 |
| 50A | R2 | Rc1-1/2" | Rc1" | Rp1" | 45 | 70 | 170 | 303 | 317 | 343 | 22 | 176 | M12 | 18 | 57 | 82 | 60 | 16 | 57 | 24 |
